Speedip V2+ — PFAS-Ready UAV Water Sampling System

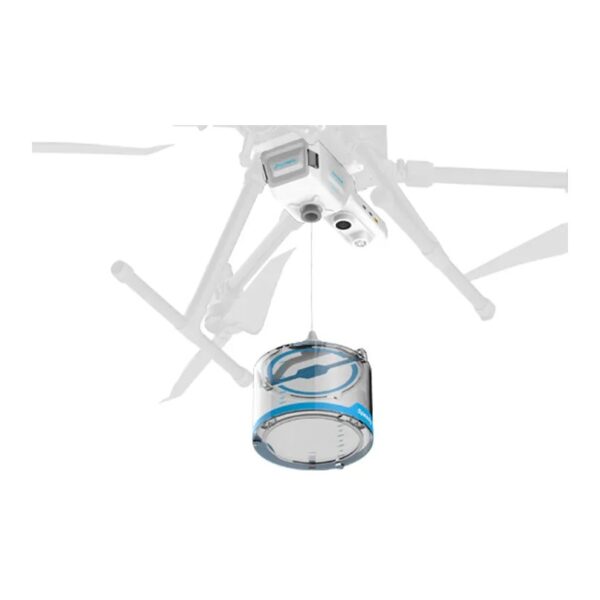

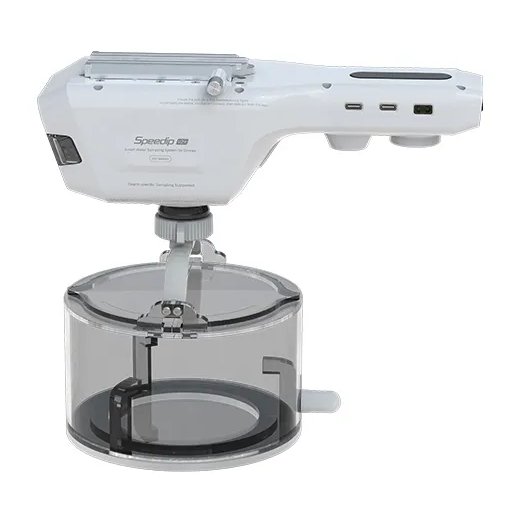

Speedip V2+, from AIRINS (formerly Soarability), is a UAV-based water-sampling system that lets teams collect samples from virtually any water body — safely, remotely and with far fewer terrain constraints. Mounted on a DJI Matrice 400, 350 or 300, the sub-750 g unit lowers a sampler up to 10 m deep with intelligent rope monitoring, an emergency rope-cut and a 180° night-vision camera, and is PFAS-ready with lab-validated stainless-steel containers.
Speedip V2+ Water Sampling System for DJI Matrice 400
Reach Any Water Body, Safely & Remotely
Fly to the target point and collect a sample without putting operators near the water. In a real mission the system collected a 1 L sample at 4.85 m depth roughly 1 km out — keeping crews safe while cutting time and cost.
Accurate, Depth-Controlled Sampling
Intelligent control logic lowers the container to the intended depth, while the corrosion-resistant, ultra-low-VOC container preserves sample integrity for trustworthy results.

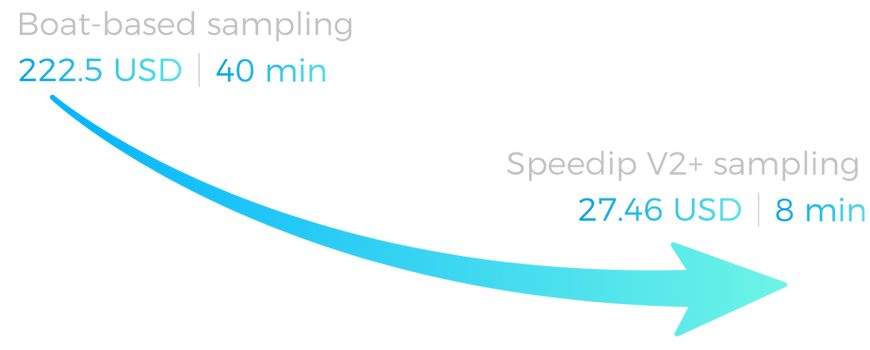

Faster and Lower-Cost Than Boats or Manual Sampling
A typical 1 km task finishes in under 8 minutes — up to ~80% faster and ~78–88% cheaper than boat or manual sampling — with a capacity of 100+ samples per day.
180° Night-Vision Camera for BVLOS Safety
A built-in starlight-level downward camera with roughly 180° diagonal field of view gives real-time situational awareness for safer beyond-visual-line-of-sight operations, day or night.

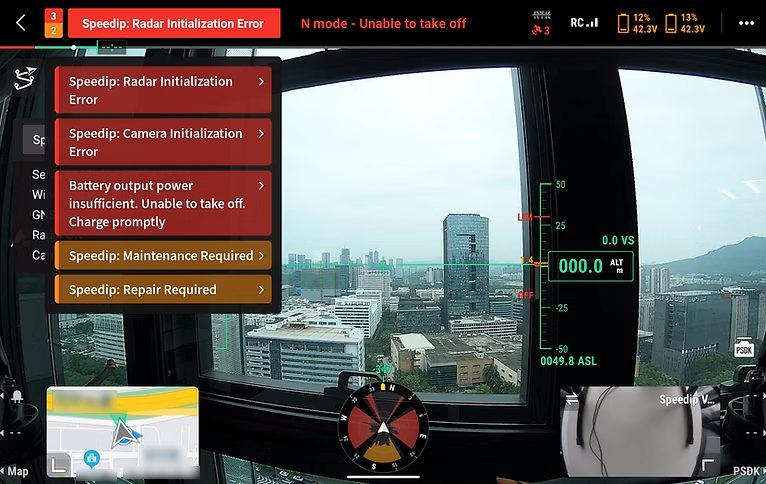

Real-Time Control via DJI Pilot
Highly compatible with DJI PSDK, Speedip V2+ runs in the DJI flight workflow with live status and alerts; for other UAVs, commands and data are exchanged over USB-C.

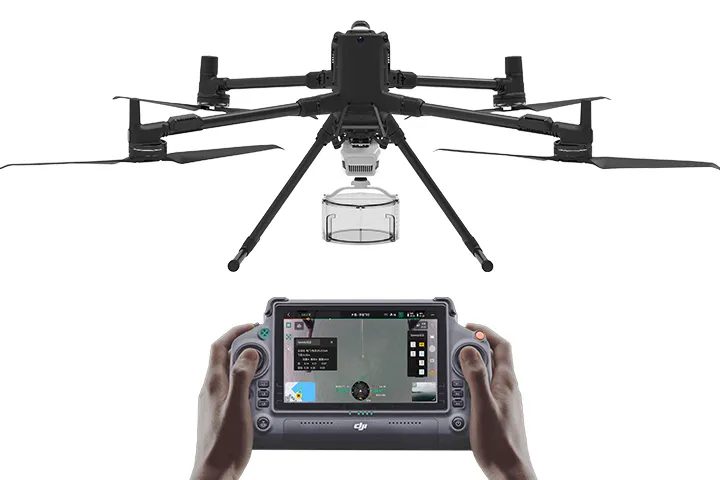

PFAS-Ready, Rugged and Reliable
Stainless-steel containers are validated for ultra-trace PFAS sampling, while the Health Management System, sealed PCBAs and 24-hour vibration and salt-spray testing deliver dependable, long-life operation.

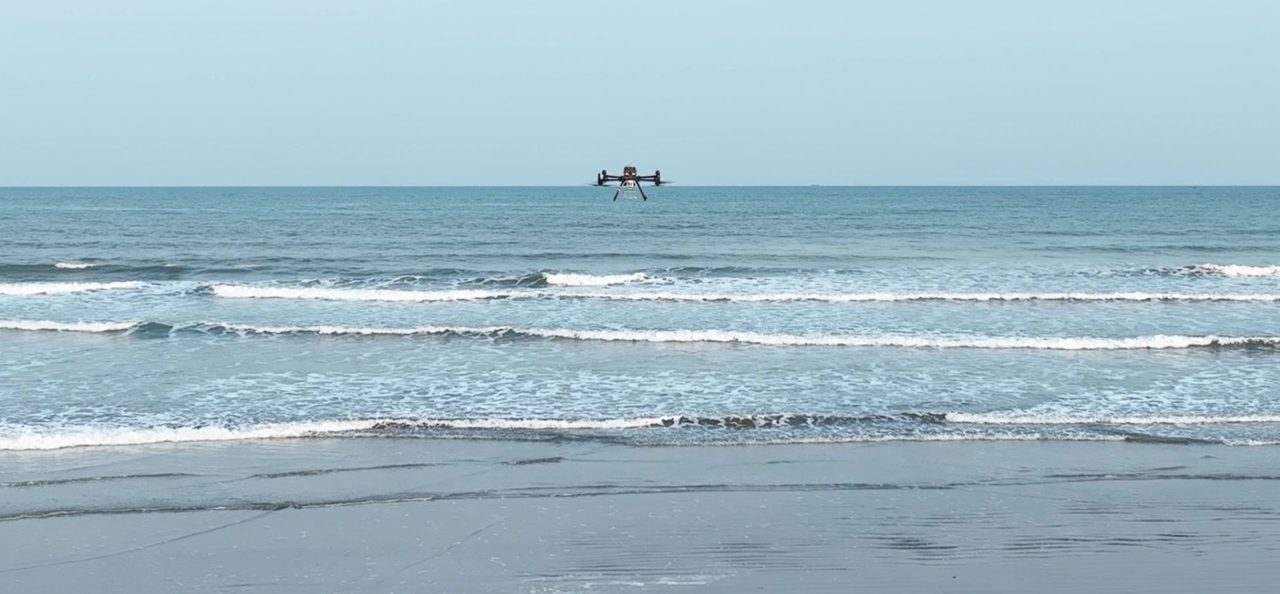

From Rivers and Lakes to Coastlines and Ponds
One system covers routine monitoring, forensic evidence collection, aquatic research and emergency response across rivers, lakes, coastal waters and industrial or mining ponds.
Service & Warranty
Speedip V2+ is supplied by GulfNet Emirates in Standard or PFAS-Ready packages for the M400 or M350/M300 model, each including the main unit, container and DJI integration kit. Onboarding, configuration guidance and the standard manufacturer warranty are included. Contact us for a tailored quotation, an online walkthrough or an on-site evaluation.
Key Specifications
| System Type | UAV-based water-sampling system |
|---|---|
| Compatible UAVs | DJI Matrice 400 (M400 model); DJI Matrice 350 / 300 (M350/M300 model) |
| Main Unit Weight | < 750 g, aerospace-grade aluminium alloy |
| Winch / Rope | Up to 10 m rope release; maximum depth = rope length minus hover height (e.g. hover 1 m → 9 m depth) |
| Container — M400 model | 2 L PMMA (standard); 1 L stainless steel (PFAS-ready option) |
| Container — M350 / M300 model | 1.1 L PMMA (standard); 1 L stainless steel option |
| PFAS Compatibility | Stainless-steel containers lab-validated — no PFAS leaching or adsorption at ppt level |
| Camera | Built-in 180° ultra-wide, starlight-level night-vision downward camera for BVLOS monitoring |
| Safety | Real-time rope monitoring (tangle / grounding) and emergency rope-cut function |
| Reliability | Health Management System (HMS); moisture/dust/corrosion-resistant PCBAs; validated by 24 h vibration + 24 h salt-spray testing |
| Integration | DJI PSDK; USB-C API for other UAVs; adjustable bracket and semi-coupled connection |
| Typical Performance | < 8 min for a ~1 km mission; up to ~80% time and ~78–88% cost savings vs manual/boat; 100+ daily samples |
| Packages | Standard (PMMA container + DJI integration kit) or PFAS-Ready (adds 3× stainless-steel containers) |
| Applications | Routine water sampling, forensic evidence collection, aquatic research, emergency water monitoring |
Frequently Asked Questions
Which drones is Speedip V2+ compatible with?
It is offered in an M400 model and an M350/M300 model, and is highly compatible with the DJI Payload SDK. For other UAVs, commands and operational data can be exchanged via Speedip’s USB-C.
What is the maximum sampling depth?
The winch can release up to 10 m of rope. Actual maximum depth depends on hover height — for example, hovering 1 m above the surface gives up to 9 m depth, and 5 m above gives up to 5 m.
What container sizes and options are available?
The M400 model ships with a 2 L PMMA container (1 L stainless-steel optional); the M350/M300 model ships with a 1.1 L PMMA container (1 L stainless-steel optional). Larger custom containers are not recommended.
Is it suitable for PFAS sampling?
Yes. The PFAS-Ready package includes stainless-steel containers lab-validated to neither leach nor adsorb PFAS at ppt level, making them suitable for ultra-trace PFAS sampling.
What does Speedip V2+ not do?
It is dedicated to physical water-sample collection only. It does not perform water-quality testing, flow-velocity monitoring, or multi-point sampling within a single task.
How is it priced?
Pricing is provided on request, in Standard or PFAS-Ready packages per model. Use the Request a Quote button for a tailored proposal from GulfNet Emirates.
