DJI Terra — Make the World Your Digital Asset
DJI Terra is professional 3D reconstruction software powered by next-generation technologies including 3D Gaussian Splatting, photogrammetry, and LiDAR processing. It supports accurate and efficient 2D and 3D reconstruction from visible light imagery, multispectral data, and DJI LiDAR sensors. When integrated with DJI Enterprise drones, Terra delivers a unified hardware and software solution for data acquisition, processing, and application — streamlining aerial surveying workflows for greater efficiency and accuracy.
View DJI Terra on DJI Enterprise →
Key Features
Photorealistic Gaussian Splatting

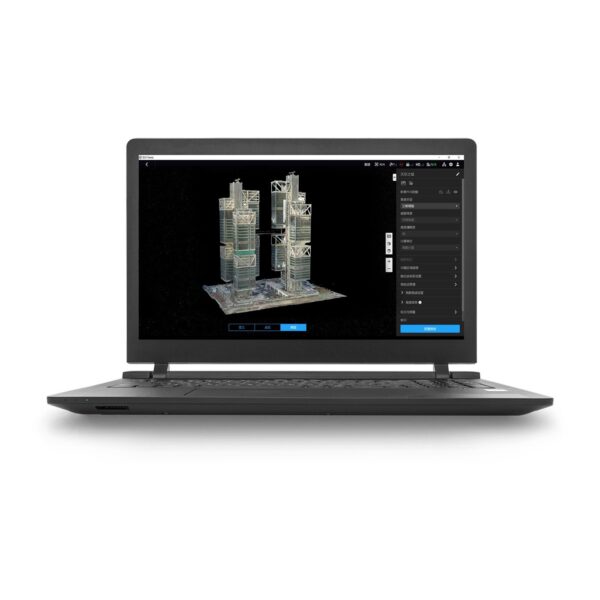

Terra’s 3D Gaussian Splatting quickly generates detailed, realistic 3D models from photos — cultural relics, architecture, urban blocks, scenic gardens — rendering fine structures, transparent and reflective objects and vegetation more faithfully than oblique photogrammetry, with natural results and distortion-free orthomosaics.
Fast and light: ~500 photos/hour, single-block modeling in 30–40 minutes, twice Terra Mesh’s speed on 10,000+ photo scenes — up to 30,000 photos per task and 300–400 photos per 1 GB RAM at city scale, on just a 4 GB NVIDIA GPU and 32 GB RAM, with one-click PLY / B3DM (3D Tiles) export.

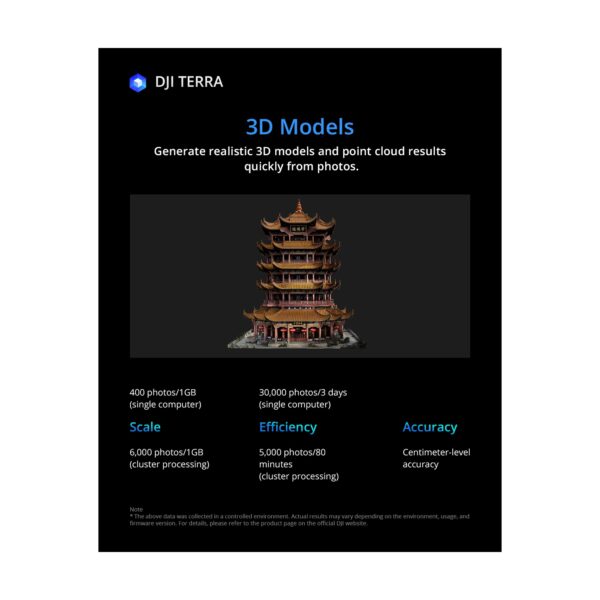

Photogrammetry — Trusted Precision

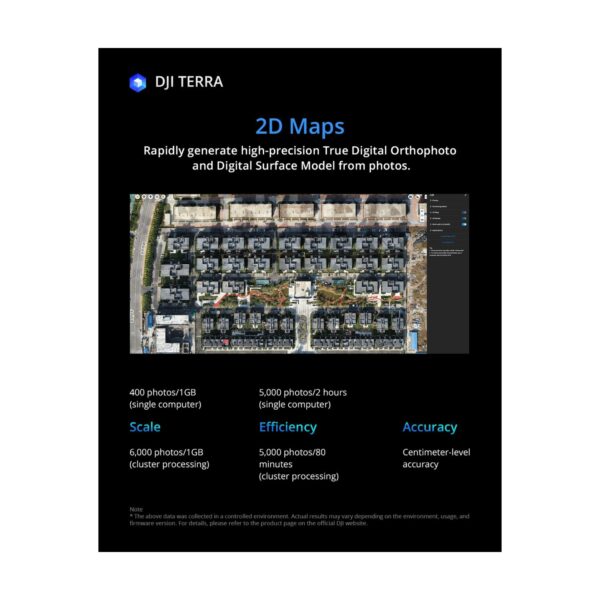

Terra rapidly generates high-precision 3D models, point clouds, true digital orthophoto maps (TDOM) and digital surface models (DSM), with adjustable mesh count and map resolution plus export to industry-standard formats.
1:500 accuracy, on-site speed: DJI RTK drone data and dedicated Matrice 4E enhancements deliver centimeter-level mapping without ground control points, even in complex environments. A workstation processes 30,000 photos in three days (21 hours clustered); 2D runs of 5,000 photos finish in under two hours — 80 minutes with cluster reconstruction.

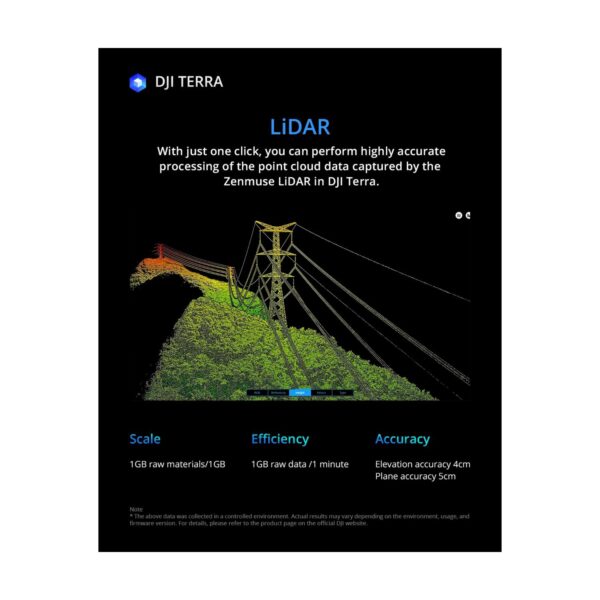

LiDAR Reconstruction — Broad Applications
Terra deeply fuses LiDAR and visible light data — a single Zenmuse LiDAR flight yields high-precision point clouds, 2D maps and 3D mesh models at once, sharply improving completeness on complex structures like bridges and substations, with survey-grade centimeter accuracy via RTK/PPK and no ground control points.

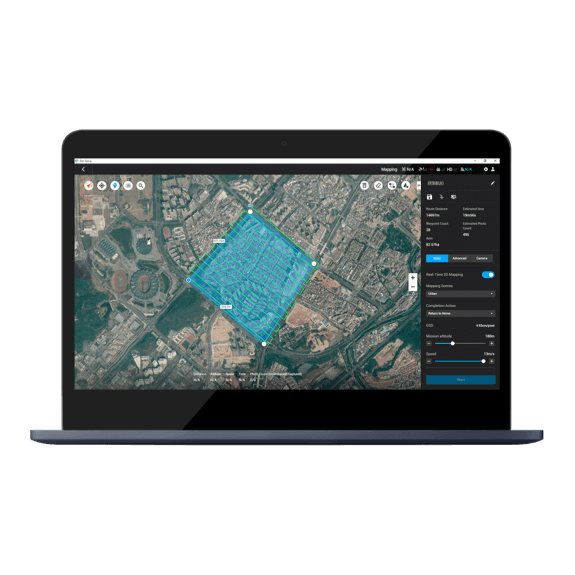

Inspection & scale: Waypoints and flight routes generate automatically from points picked in a 3D model or point cloud — now supporting Matrice 4T and 4TD — while 32 GB of RAM handles up to 120 GB of LiDAR data (~10 km²) and 128 GB workstations reach city scale.
Multispectral Reconstruction for Agriculture
Generate NDVI and NDRE vegetation index maps from DJI Mavic 3 Multispectral and Phantom 4 Multispectral data, with radiometric correction and reflectance maps for remote-sensing research.
Prescription maps: Pick your crop type (Field or Fruit Tree) to instantly produce 2D maps, optimized DJI Agras routes and variable-rate spraying maps that improve yields while cutting costs.
Cluster Reconstruction — Superior Efficiency
Designed for ultra-large-scale mapping such as smart cities, cluster reconstruction overcomes single-machine limits through multi-GPU, multi-node collaboration — processing 6,000 photos per 1 GB of available RAM.
Lightning fast: Just five worker devices rebuild 30,000 photos in high resolution in only 21 hours, and workers scale flexibly as projects grow.
Integrated Aerial Survey — Hardware & Software Synergy
Terra is deeply compatible with DJI Enterprise hardware — Matrice 4E, Matrice 400, Zenmuse P1, Zenmuse L3 and D-RTK 3 — for cost-effective visible-light and professional LiDAR mapping.
Complete workflow: One-click handoff to DJI Modify for model processing and post-editing, plus integrated DJI Reality — Mesh, 3DGS and point-cloud viewing at no extra licence cost — an end-to-end capture, process, edit and share pipeline.
More Highlights
PPK Calculation
Robust built-in PPK (Post-Processed Kinematic) ensures high-precision aerial survey results in any environment, with local PPK for both visible light imagery and LiDAR.
Works anywhere: Centimeter-level positioning accuracy holds even with limited network connectivity or where RTK is unavailable.
Annotation & Measurement
Intuitive annotation and measurement tools deliver accurate point, line, area and volume measurements, with multiple export formats for engineering, surveying and management needs.
Model-to-site view: Click any part of the 3D model to instantly see the corresponding camera position and original images — smooth switching that makes inspection and site verification efficient.
Control Points & Check Points
For visible light reconstruction, import and mark control and check points to precisely calibrate models and point clouds. Terra supports semi-automatic point picking with sub-pixel accuracy in automatic recognition, greatly improving GCP marking efficiency — while check points let you verify reconstruction accuracy at any stage, ensuring data reliability.
8,500+ Built-In Coordinate Systems
Terra supports local coordinate systems, seven-parameter transformations, and PRJ file imports, and intelligently recommends the optimal coordinate system based on your location — ensuring output data integrates seamlessly with local standards for precise, customizable exports.
Application Scenarios
Surveying & Mapping, Public Safety, Electricity & Power Line Inspection, Oil & Natural Gas, Roads & Bridges, Water Conservancy, Precision Agriculture, Forestry, Mining Survey, Emergency Survey & Disaster Response, Gaming, Film & Television.
License Plans
| Feature | Agriculture | Standard | Flagship | Education |
|---|---|---|---|---|
| Agricultural Application | ✓ | — | — | — |
| 2D Map Reconstruction (Field/Fruit Tree) | ✓ | — | — | — |
| 2D Map Reconstruction (Urban) | — | ✓ | ✓ | ✓ |
| 2D Multispectral Reconstruction | ✓ | — | — | — |
| 3D Mesh Reconstruction | — | ✓ | ✓ | ✓ |
| LiDAR Point Cloud Reconstruction | — | ✓ | ✓ | ✓ |
| Terrain Result | — | ✓ | ✓ | ✓ |
| Gaussian Splatting | — | ✓ | ✓ | ✓ |
| Electricity Application | — | — | ✓ | — |
| Cluster Computation | — | — | ✓ | — |
| Bind Device | 3 Devices | 1 Device | 1 Device | 10 Devices |
| Authorization Mode | Online | Online / Offline | Online / Offline | Online |
| Validity Period | 1 Year | 1 Year / Permanent | 1 Year / Permanent | Permanent |
How to buy: DJI Terra Standard, Flagship and Cluster versions are available through official DJI dealers — GulfNet Emirates is an official DJI Enterprise dealer in the UAE. Terra + DJI Modify Flagship bundles offer the best value for complete survey-to-edit workflows, and a free one-month trial (up to 500 photos, 8 GB of LiDAR data) is available on request — contact us to arrange an activation code.
System Requirements
| Component | Minimum Requirement |
|---|---|
| Operating System | Windows 10 or higher (64-bit) |
| RAM | 32 GB |
| GPU Memory | 4 GB (NVIDIA) |
| GPU | NVIDIA GeForce GTX 1050 Ti or better (compute capability 6.1+) |
| Authorization | Online or Offline (edition-dependent) |
Service & Support
GulfNet Emirates is an official DJI Enterprise dealer in the UAE. DJI Terra licenses purchased from us are genuine DJI activations delivered by email, with local assistance in English and Arabic for activation, device binding and edition selection — backed by DJI’s official software support channels.
Frequently Asked Questions
How is a DJI Terra license delivered?
Licenses are delivered as an activation code sent by email after purchase. Bind the code to your DJI account, then activate it in the DJI Terra desktop app.
How many devices can one license run on?
Agriculture supports 3 devices, Standard and Flagship support 1 device, and Education supports 10 devices. Device unbinding is limited to one request per calendar year for 1-device licenses and two for 3-device licenses.
Can I try DJI Terra before buying?
Yes — a free one-month trial is available (up to 500 photos per reconstruction and 8 GB of LiDAR data, on a single computer). Contact us and we will arrange a trial activation code.
What is the difference between online and offline authorization?
Online licenses require an internet connection and bind to one DJI account and one computer. Standard and Flagship also offer offline authorization for air-gapped environments; offline mode disables GEO-zone unlocking, map loading/location search and bug reports.
What are the minimum system requirements?
Windows 10 or above (64-bit), 32 GB of RAM, and an NVIDIA graphics card with at least 4 GB of GPU memory and compute capability 6.1+ (GeForce GTX 1050 Ti or better recommended).
Is DJI Modify included with DJI Terra?
DJI Modify is separate software, but the Terra + Modify Flagship bundles include both at a reduced price. DJI Reality for model visualization is included with Terra at no additional licensing cost.
